注：

1、进入司机室的走台入口方式分为：端入、侧入、顶入。

2、起重量包括挂梁重量。

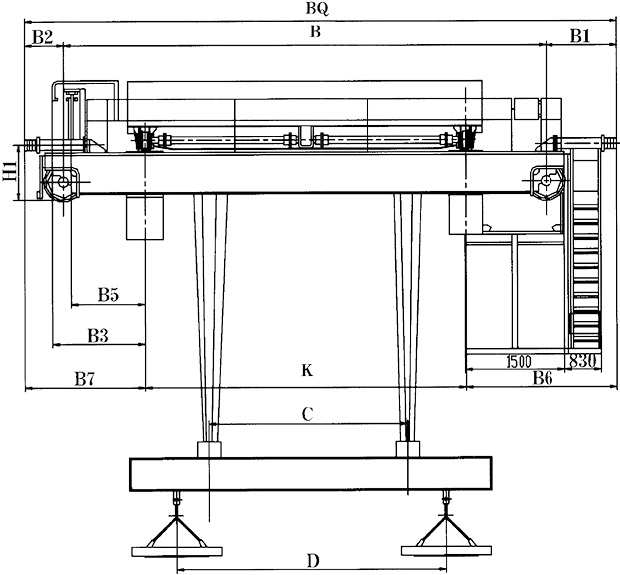

3、起重机总重不包括挂梁重量。

4、挂梁上下吊点距C、D可根据用户要求确定，表中尺寸仅供参考。

Note：

1．The direction of platform door to the driver，s cap is side，end and top．

2．The lifting capacity includes the weight of the carrier-beam．

3．The total weight does’t include the weight of the carrier-beam．

4．The value of C and D are depended on the requirements
